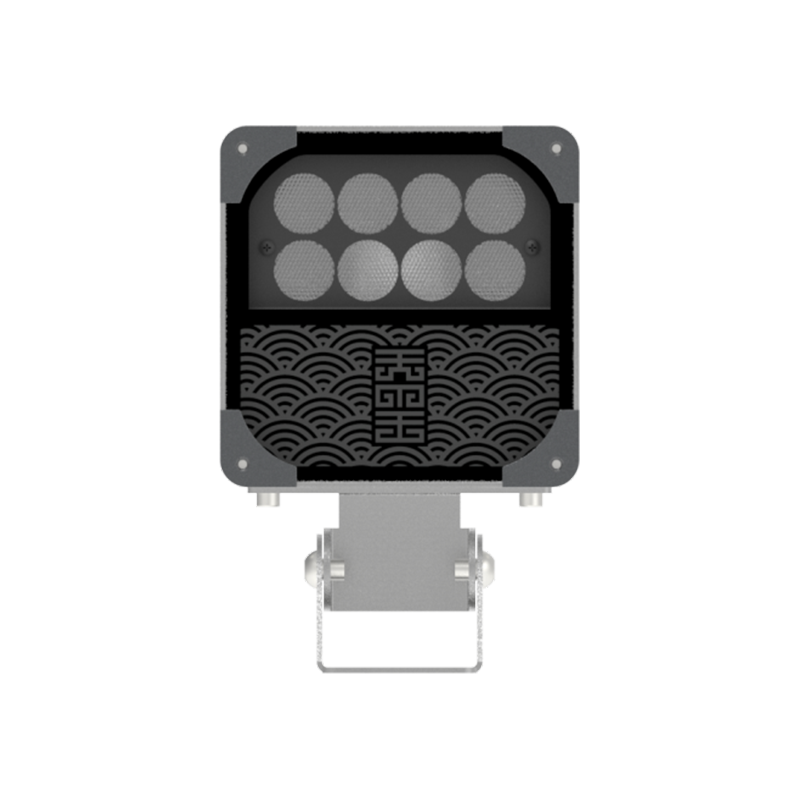

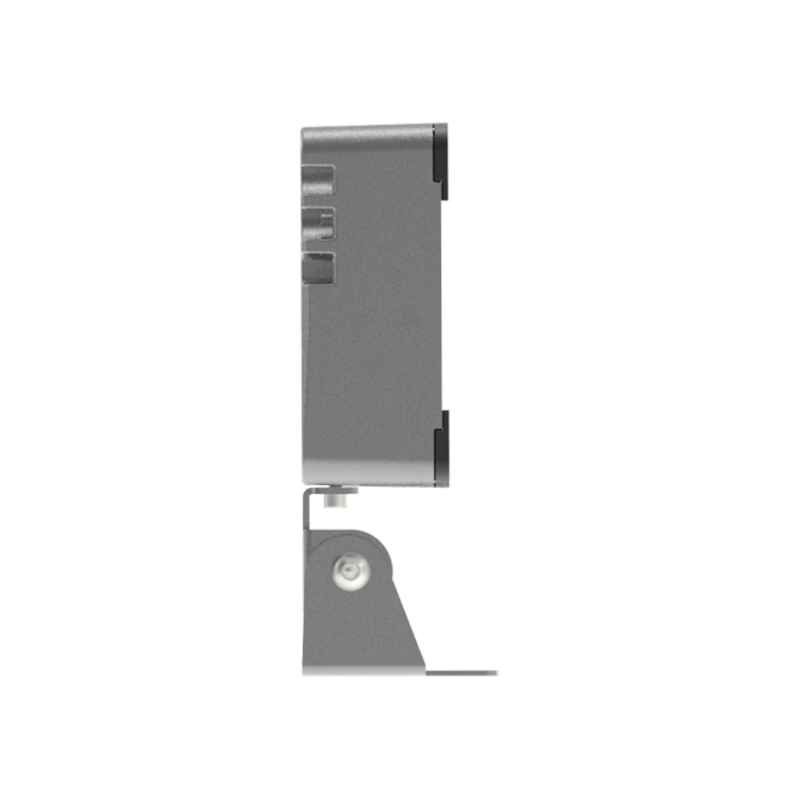

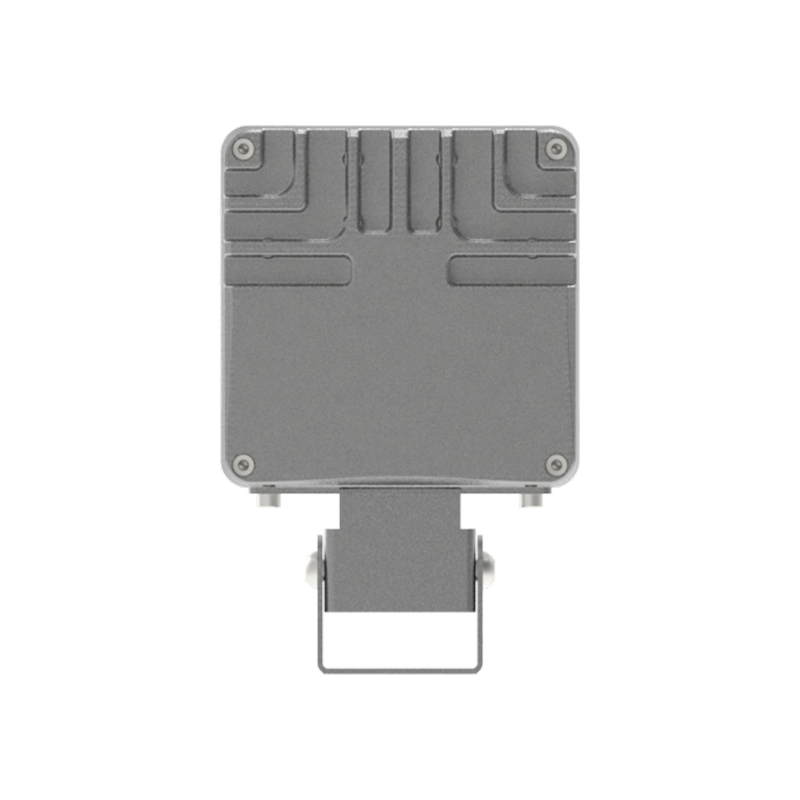

L02C tianxi flood light architectural lighting LO2C-D lighting
  • L02C tianxi flood light architectural lighting LO2C-D lighting
  • L02C tianxi flood light architectural lighting LO2C-D lighting
  • L02C tianxi flood light architectural lighting LO2C-D lighting
  • L02C tianxi flood light architectural lighting LO2C-D lighting
  • L02C tianxi flood light architectural lighting LO2C-D lighting

L02C tianxi flood light architectural lighting LO2C-D lighting

Company:

Zhejiang Ouruijie Lighting Technology Co., Ltd.

Tel:

+86-158 6823 3820

E-mail：

quentin@ruirock.com
Contact Us
PREV：L02C tianxi flood light architectural lighting LO2C-F lighting
NEXT：L02C tianxi flood light architectural lighting LO2C-B lighting

L02C tianxi flood light architectural lighting LO2C-D lighting

The L02C tianxi flood light architectural lighting LO2C-D lighting is designed for energy-saving and environmental research, development, production and sale. The product uses the single chip high-power LED as a light source, with simple structure, compact shape and good heat dissipation performance; luminous flux can reach 18770lumen play time is more than 50000 hours effective luminous efficiency is 99% Emission angle 120 degrees Luminous flux distribution are uniform Low color temperature 3200k to 6500k Color rendering index classes 89 Ra.
NOTE: 1.L02C flood light uses individual lamp shell, not easy to maintenance. 2.If you want to change the lamp, Please refer to the original lamp manufacturer.

PRODUCT PARAMETER

L02C-006D 14W 3°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

51944

80349

0.05

2

12986

20087

0.11

3

3247

5022

0.16

4

1443

2232

0.22

5

519

803

0.27

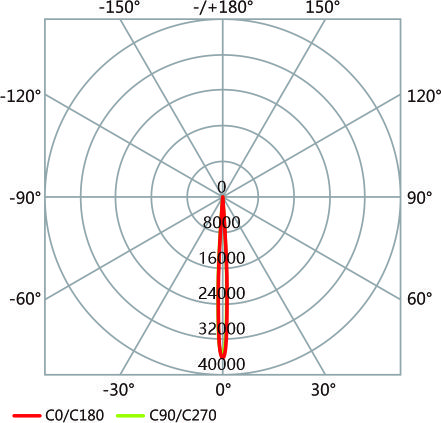

L02C-006D 14W 5°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

24988

37219

0.09

2

6247

9305

0.18

3

2776

4135

0.27

4

1562

2326

0.36

5

999

1489

0.45

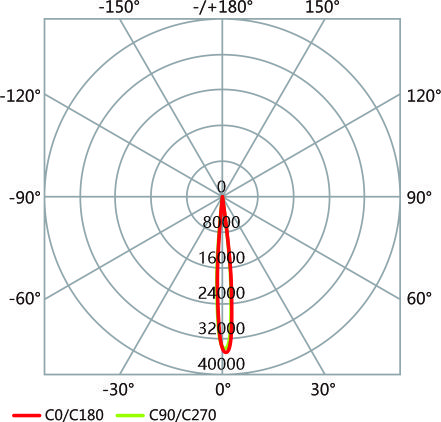

L02C-008D 16W 10°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

23536

36419

0.18

2

5884

9105

0.36

3

2615

4047

0.54

4

1471

2276

0.72

5

941

1457

0.9

L02C-008D 16W 15°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

12591

18770

0.24

2

3148

4692

0.39

3

1399

2086

0.73

4

787

1173

0.97

5

503

750

1.121

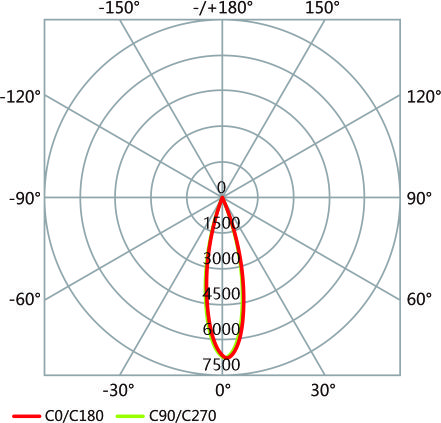

L02C-008D 16W 25°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

4712

6998

0.47

2

1178

1750

0.94

3

523

777

1.41

4

294

437

1.89

5

188

279

2.36

L02C-008D 16W 40°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

2091

3209

0.68

2

522

802

1.37

3

232

356

2.05

4

130

200

2.74

5

83

128

3.42

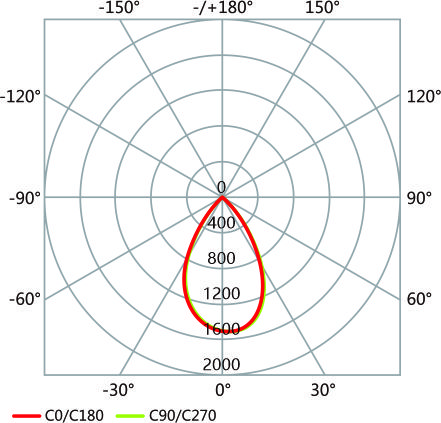

L02C-008D 16W 60°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

908

1508

1.18

2

227

376

2.37

3

101

167

3.55

4

56

94

4.74

5

36

60

5.93

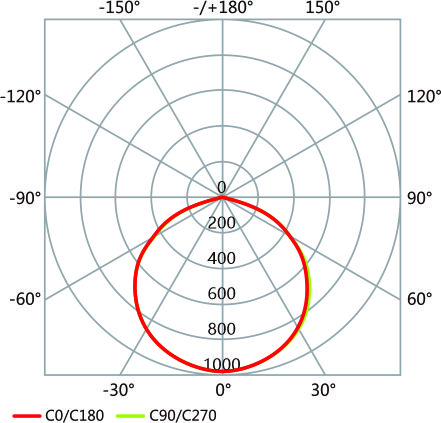

L02C-008D 16W 90°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

143

490

3.07

2

35

122

6.14

3

15

54

9.21

4

8

30

12.29

5

5

19

15.36

ACCESSORIES

L02C-002D



Rated Power

Input Voltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

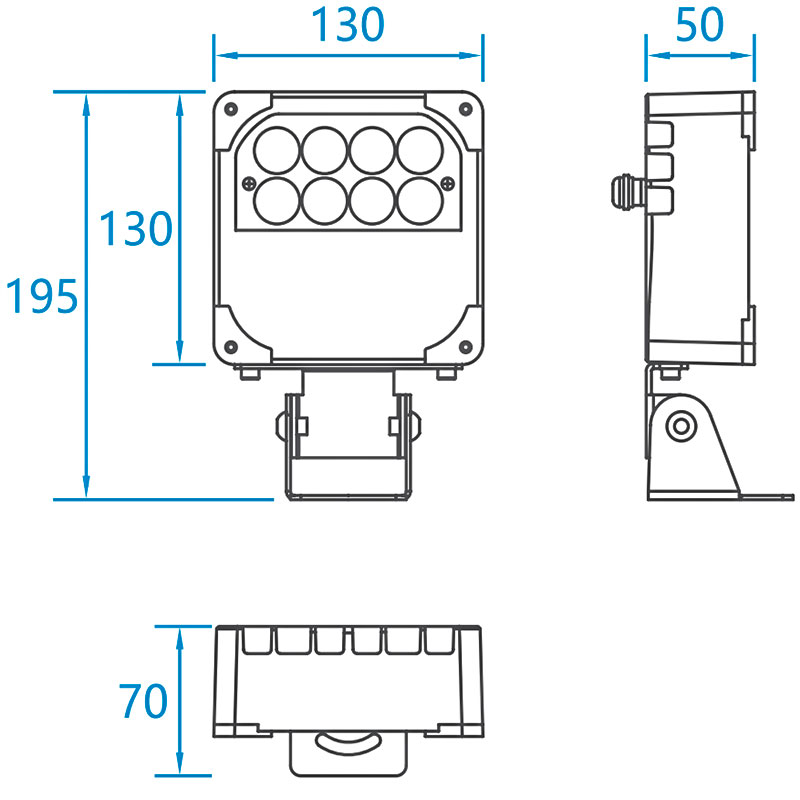

Lamp Size

Gross Weight/Packing Size



20W

DC 24V

2pcs/RGBW

718lm

15°/25°/40°/60°

1.2kg

195x130x70mm

1.4kg/230x210x130(1pcs/box)

7.6kg/440x350x250(6pcs/box)

L02C-006D



Rated Power

Input Voltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000/5700K

14W

DC 24V

6 pcs

855lm

3°/5°

1.3kg

195x130x70mm

1.5 kg/230x210x130(1pcs/box)

8.2kg/440>350x250(6pcs/box)

L02C-008D



Rated Power

Input Voltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000/5700K

16W

DC 24V

8 pcs

1481lm

7°/10°/15°/25°/40/6090°

15x55°/15x30°/15x45°

4x50°/1 3x40°/30x60°

1.3kg

195x130x70mm

1.5 kg/230x210x130(1pcs/box)

8.2kg/440x350x250(6pcs/box)
