LED controller control system ORJ-980D sub-control can control up to 18A 3-zone cold light source, equipped with the latest advanced technology TC4010 digital controller with memory function, which can meet the electrical characteristics of multiple circuit boards and splices.
Parameter:The LED controller control system ORG-980D is a kind of sub-control, which can be connected to the control panel through an RJ45 communication cable. The controller can receive commands from the control panel all the time, so as to operate lights automatically according to commanded area, time and brightness.
●32-65536 level control, can restore the true color and detail image;
●512 level tricolor independent brightness control, accurate white balance adjustment is more simple and effective;
●Adjusted according to the physiological characteristics of human visual hardware inverse gamma correction function; .
●The 100Hz refresh rate can ensure the stability of the picture;
●Adopt the Ethernet interface and UDP network protocol, the maximum transmission distance is 100 meters;
●The display module can display controller parameters and the state;
●The controller output is compatible with TTL signal and differential signal dual mode;
●The multi chip control set in one, set up by the software control chip type, OE clock frequency, period, duty ratio, gray level and other parameters change;
●Double network interface, can realize the controller controller cascade; automatic detection, display connection status;
●The 512 driver online addressing support 512 types: DMX12AP, UCS512; SM16512; SM16511; UCS512C; UCS512C4; TM512; WS2821; DMX512X;
●Each port can drive 1024, 3072 channel;

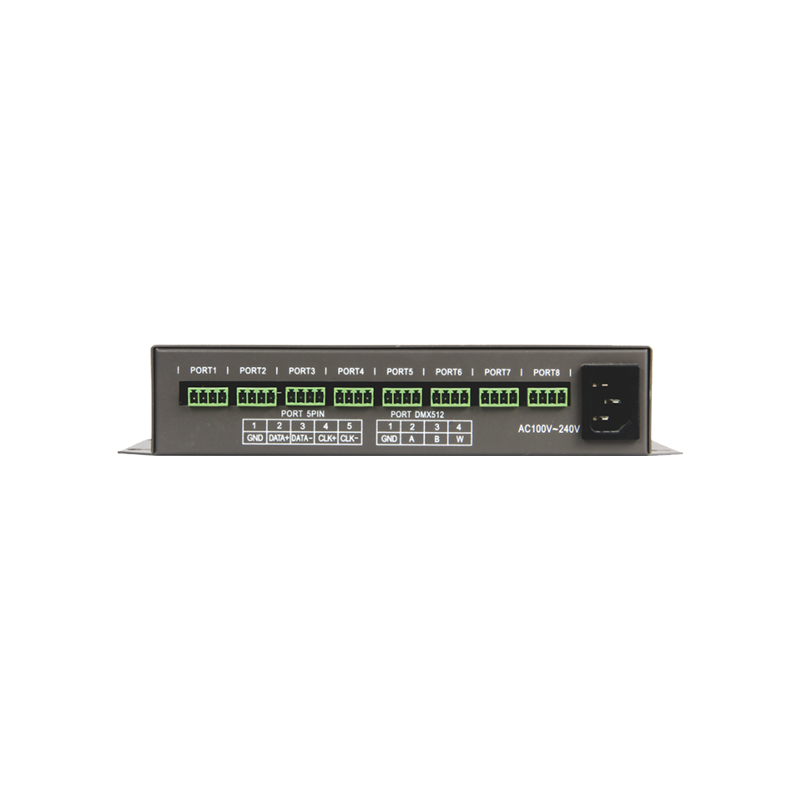

●The 8 independent output port, each port is isolated.
PRODUCT PARAMETER
| Input Voltage | AC 220V |
| Rated Power | 15W |
| Size(cm) | 23.6x13.5x4.5 |
| Fixed Hole Pitch | 7. .5cm; 21.85cm |
