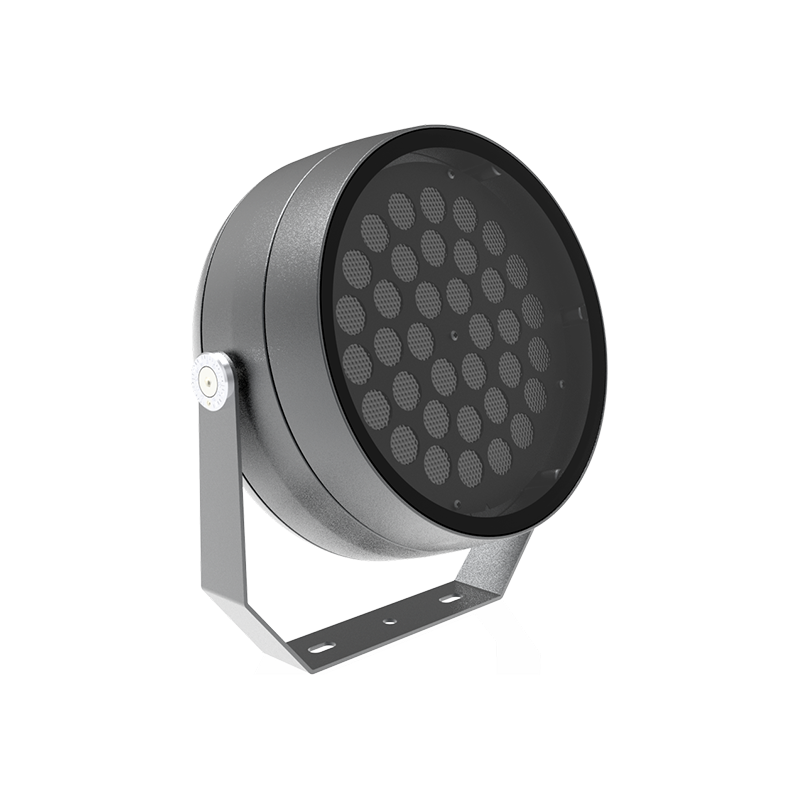

Genie | flood light architectural lighting AT9 fixtures

The Genie | flood light architectural lighting AT9 fixtures have a color rendering index of 90 and have a very high CRI of 95. Genie floodlight AT9 architectural lighting fixtures are designed to be used in a variety of applications where outdoor flood lighting is needed. Genie | flood light architectural lighting AT9 fixtures, 1-lateral, 1-row, 18-LED Specifications Power: Type: Voltage: Color Temperature: Beam Angle: Lumens Balanced CCT Daylight 5400K 110V (AC) /230V (DC) 50Hz/60Hz 230W 43° 2650 Lumen.They are an excellent choice for use indoors in spaces where you want to highlight objects and areas with a bright, white light—they can be pointed at artwork or materials on display.

PRODUCT PARAMETER

L06A-009A 21W 3.5°

(h)y	Eavg(lx)	Emax[lx]	D[m]
4	5017	6825	0.26
8	1254	1706	0.52
12	557	758	0.78
16	313	426	1.04
20	200	273	1.30

L06A-009A 30W 5°

(h)y	Eavg(lx)	Emax[lx]	D[m]
4	5192	7733	0.36
8	1298	1933	0.73
12	577	859	1.09
16	325	483	1.46
20	208	309	1.82

L06A-018A 42W 7°

(h)y	Eavg(lx)	Emax[lx]	D[m]
2	13567	19232	0.27
4	3392	4808	0.54
6	1507	2137	0.81
8	848	1202	1.08
10	543	769	1.35

L06A-018A 42W 15°

(h)y	Eavg(lx)	Emax[lx]	D[m]
2	4988	7393	0.47
4	1247	1848	0.94
6	554	822	1.41
8	312	462	1.88
10	200	296	2.35

L06A-018A 42W 25°

(h)y	Eavg(lx)	Emax[lx]	D[m]
2	2289	3449	0.88
4	572	863	1.76
6	254	383	2.64
8	143	216	3.52
10	91	138	4.40

L06A-018A 42W 40°

(h)y	Eavg(lx)	Emax[lx]	D[m]
2	824	1236	1.60
4	206	309	3.20
6	92	137	4.80
8	55	77	6.40
10	33	49	8.00

L06A-018A 42W 60°

(h)y	Eavg(lx)	Emax[lx]	D[m]
2	520	843	2.20
4	130	211	4.40
6	58	94	6.60
8	33	53	8.80
10	21	34	11.00

L06A-012A 28W 70°x 145°

ACCESSORIES

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Packing Size/Gross Weight
3000/4000K/RGB	30W	AC 220V	9pcs	2476lm	5°	2.6kg	180x180x230mm	2.9kg/325x275x245mm(1pcs/box)
3000/4000K/RGB	21W	AC 220V	9pcs	1598lm	7°/15/25/40/60°	2.6kg	180x180x230mm	12.1kg/455x455x300mm(4pcs/box)

L06A-012A

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Packing Size/Gross Weight
3000/4000K/RGB	14W	AC 220V	12 pcs	1203lm	7°/15°/25°/40°/60°	2.6kg	180x180x230mm	2.9kg/325x275x245mm(lpcs/box)
3000/4000K/RGB	28W	AC 220V	12 pcs	2165lm	7°/15°/25°/40°/60°	2.6kg	180x180x230mm	12.1kg/455x455x300mm(4pcs/box)

L06A-01 8A

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Packing Size/Gross Weight
3000/4000K/RGB	21W	AC 220V	18 pcs	1815lm	7°/15°/25/40°/60°	2.7kg	180x180x230mm	3.2kg/325x275x245mm(1pcs/box)
3000/4000K/RGB	42W	AC 220V	18 pcs	3283lm	7°/15°/25/40°/60°	2.7kg	180x180x230mm	13.1kg/455x455x300mm(4pcs/box)

L06A-024A

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Packing Size/Gross Weight
3000/4000K/RGBW	50W	AC 220V	24 pcs	4877 lm	15/25/40/60°	2.6kg	180x180x230mm	3.3kg/325x275x245mm(1pcs/box)
								13.2kg/455x455x300mm(4pcs/box)

L06A-018C

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Packing Size/Gross Weight
3000/4000K/RGB	40W	AC 220V	18 pcs	2510lm	3.5°	4.8kg	240x240x285mm	5.0kg/360x330x280mm(lpcs/box)
3000/4000K/RGB	60W	AC 220V	18 pcs	4370lm	5°	4.8kg	240x240x285mm	10.6kg/630x365x295mm(2pcs/box)

L06A-024C

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Packing Size/Gross Weight
3000/4000K/RGBW	60W	AC 220V	24 pcs	4558 lm	7/15/25°/40%60°	5.1kg	240x240x285mm	5.3kg/360x330x280mm(1pcs/box)
3000/4000K/RGBW	72W	AC 220V	24 pcs	5429 lm	7/15/25°/40%60°	5.1kg	240x240x285mm	11.2kg/630x365x295mm(2pcs/box)

L06A-036C

	Rated Power	Input Voltage	LED Quantity	Luminous Flux	Optical Angle	Net Weight	Lamp Size	Packing Size/Gross Weight
3000/4000K/RGBW	80W	AC 220V	36 pcs	6516lm	7°/15/25°/40/60°	5.2kg	240x240x285mm	5.4kg/360x330x280mm(lpcs/box)
3000/4000K/RGBW	90W	AC 220V	36 pcs	6963lm	7°/15/25°/40/60°	5.2kg	240x240x285mm	11.3kg/630x365x295mm(2pcs/box)
