PRODUCT PARAMETER

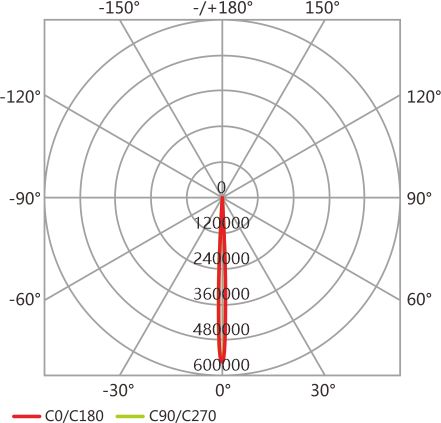

L08A-030A 100W 3°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 4 | 23048 | 38064 | 0.23 | |
| 8 | 5762 | 9516 | 0.46 | |
| 12 | 2561 | 4229 | 0.69 | |
| 16 | 1440 | 2379 | 0.92 | |
| 20 | 921 | 1523 | 1.15 |
L08A-030A 150W 5°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 4 | 21041 | 31339 | 0.36 | |
| 8 | 5260 | 7835 | 0.73 | |
| 12 | 2338 | 3482 | 1.09 | |
| 16 | 1316 | 1959 | 1.46 | |
| 20 | 841 | 1254 | 1.82 |

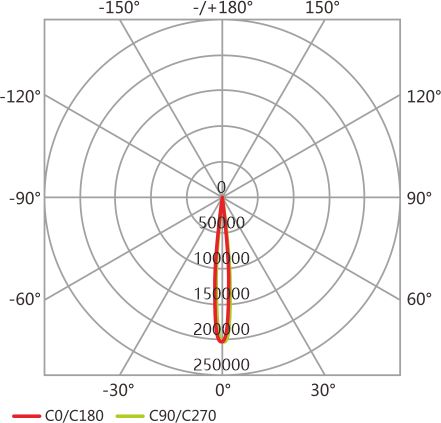

L08A-072A 150W 10°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 4 | 8863 | 12986 | 0.76 | |
| 8 | 2216 | 3247 | 1.51 | |
| 12 | 985 | 1443 | 2.27 | |
| 16 | 554 | 811 | 3.03 | |
| 20 | 354 | 519 | 3.78 |
L08A-030A 150W 15°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 4 | 3540 | 5054 | 1.11 | |
| 8 | 884 | 1263 | 2.22 | |
| 12 | 393 | 561 | 3.33 | |
| 16 | 221 | 315 | 4.44 | |
| 20 | 141 | 202 | 5.56 |
L08A-072A 150W 25°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 4 | 2292 | 1797 | 2.24 | |
| 8 | 297 | 449 | 4.48 | |
| 12 | 132 | 199 | 6.73 | |
| 16 | 74 | 112 | 8.97 | |
| 20 | 47 | 71 | 11.21 |

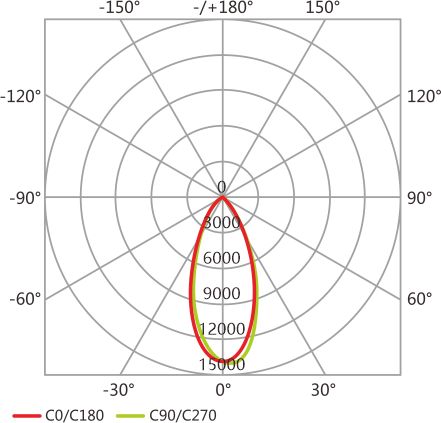

L08A-030A 150W 40°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 4 | 2091 | 3283 | 1.59 | |
| 8 | 522 | 820 | 3.19 | |
| 12 | 232 | 364 | 4.78 | |
| 16 | 130 | 205 | 6.37 | |
| 20 | 83 | 131 | 7.97 |

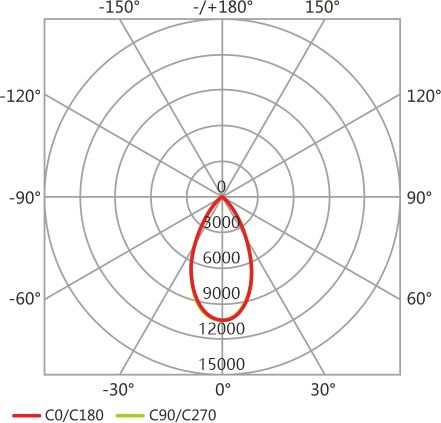

L08A-072A 150W 60°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 2 | 1479 | 2429 | 2.06 | |
| 4 | 369 | 607 | 4.13 | |
| 6 | 164 | 269 | 6.2 | |
| 8 | 92 | 151 | 8.26 | |
| 10 | 59 | 97 | 10.33 |

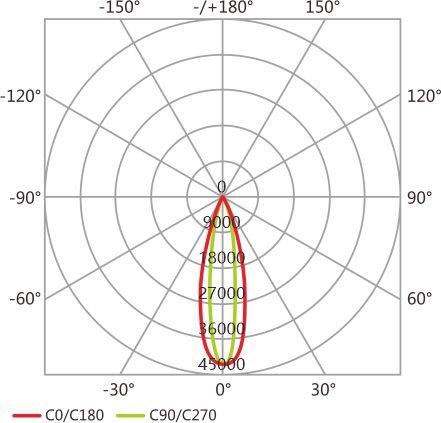

L08A-030A 150W 15x30°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 4 | 8382 | 10692 | 0.63 | |
| 8 | 2096 | 2673 | 1.25 | |
| 12 | 931 | 1188 | 1.88 | |
| 16 | 523 | 668 | 2.51 | |
| 20 | 335 | 427 | 3.13 |

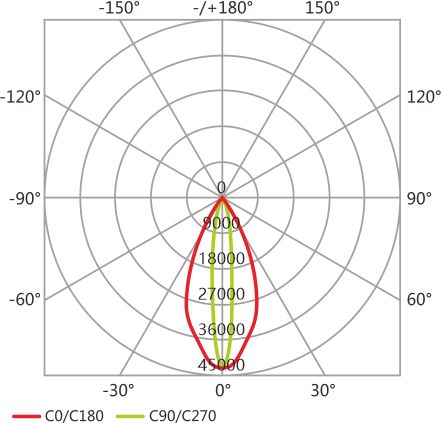

L08A-072A 150W 15x45°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 2 | 8680 | 10838 | 0.47 | |
| 4 | 2170 | 2710 | 0.93 | |
| 6 | 964 | 1204 | 1.39 | |
| 8 | 542 | 677 | 1.86 | |
| 10 | 347 | 433 | 2.32 |
L08A-030A 150W 15x55°
| |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 2 | 7062 | 8816 | 0.47 | |
| 4 | 1765 | 2204 | 0.95 | |
| 6 | 787 | 979 | 1.42 | |
| 8 | 441 | 551 | 1.89 | |
| 10 | 282 | 352 | 2.37 |

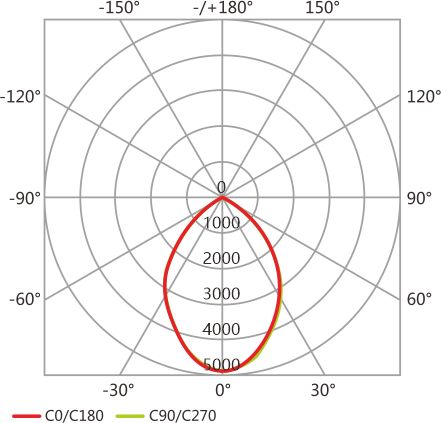

L08A-072A 1 50W 90°
 |
(h)y |
Eavg(lx) |
Emax[lx] |
D[m] |
| 1 | 2420 | 4904 | 1.58 | |
| 2 | 605 | 1226 | 3.16 | |
| 3 | 268 | 544 | 4.75 | |
| 4 | 151 | 306 | 6.33 | |
| 5 | 96 | 196 | 7.92 |
ACCESSORIES
L08A-030AP3.3L
|
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |

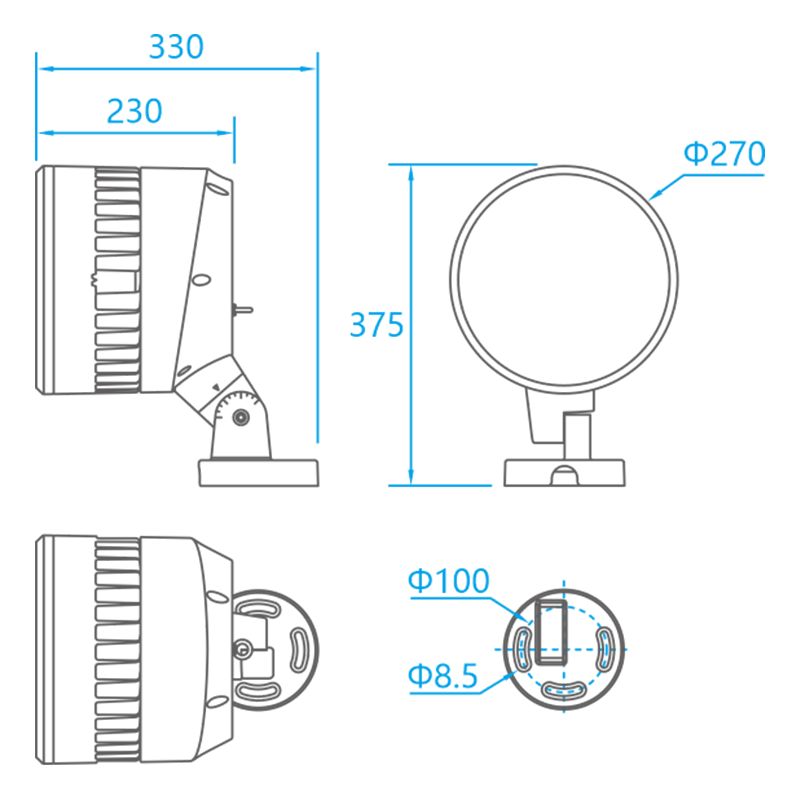

Lamp Size |
Gross Weight/Packing Size |
|
3000/4000/5700K |
100W |
AC 220V |
30pcs |
8395 1m |
3° |
9.6kg |
330xΦ270x375mm |
10.6kg/385*320>435(1pcs/box) |
|
150W |
12675 1m |
5° |
L08A-048AP2.2L
|
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
|
3000.4000K/RGBW |
100W |
AC 220V |
48 pcs |
8995lm |
10°/15°/25°/40°/60° |
9.5kg |
330xΦ270x375mm |
10.5kg/385x320x435(1pcs/box) |
L08A-072AP2.2L
|
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
|
3000/4000K/RGBW |
150w |
AC 220V |
72 pcs |
13495 1m |
10°/15°/25°/40°/60° |
9.6kg |
330xΦ270x375mm |
10.6kg/385x320x435(1pcs/box) |
L08A-018AP4.0L (200W Fan)
|
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
|
|
200w |
AC 220V |
18pcs/RGBW |
8867 lm |
15°/25°/40°/60° |
9.8kg |
330xΦ270x375mm |
10.8kg/385x320x435(1pcs/box) |
L08A-072AP3.3L (200W~300W Fan)
|
|
Rated Power |
Input Voltage |
LED Quantity |
Luminous Flux |
Optical Angle |
Net Weight |
Lamp Size |
Gross Weight/Packing Size |
|
3000/4000/5700K |
200W |
AC 220V |
72pcs |
19980 1m |
10°/15°/25°/40°/60° |
9.7 kg |
330xΦ270x375mm |
10.8kg/385x320x435(1pcs/box) |
|
240W |
22058 lm |
9.9 kg |
10.9kg/385x320x435(1pcs/box) |
|||||
|
300W |
24415 lm |
10.3 kg |
11.3kg/385x320x435(1pcs/box) |
