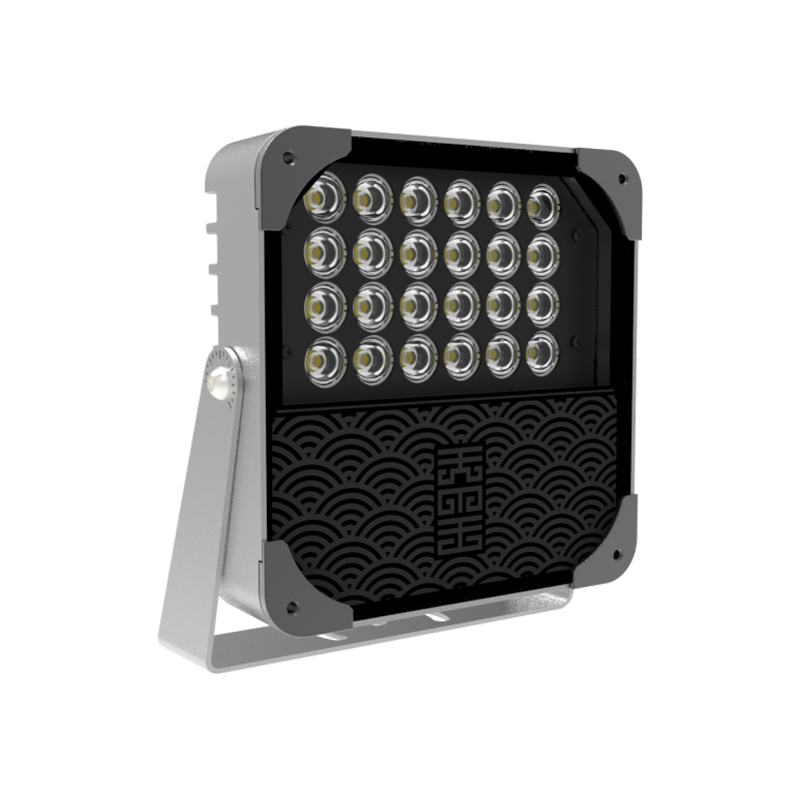

L02C tianxi flood light architectural lighting LO2C-A lighting

The L02C tianxi flood light architectural lighting LO2C-A lighting, using the high performance constant current constant voltage driver. The main design parameter is the output power, to meet different illumination requirements. Wide beam angle and uniform illumination are available under different operating modes, including FM and AM modes.
The L02C tianxi flood light architectural lighting LO2C-A lighting from TIANXI Lighting is a high-performance, energy-saving floodlight that combines high performance with excellent quality. The L02C features an efficient XHP35 XP-L2 LED and produces a bright beam of light with wide angle distribution.

PRODUCT PARAMETER

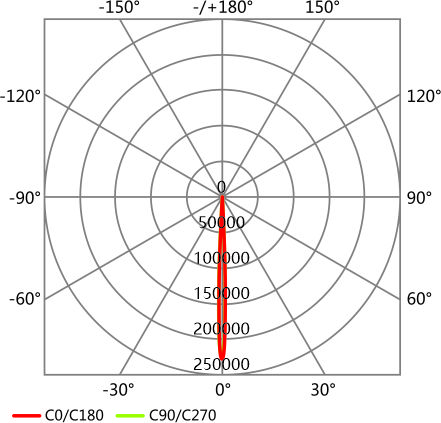

L02C-012A 40W 3°



(h)y

Eavg(lx)

Emax[lx]

D[m]
4 9307 14396 0.22
8 2327 3599 0.44
12 1034 1600 0.66
16 581 899 0.88
20 372 575 1.1

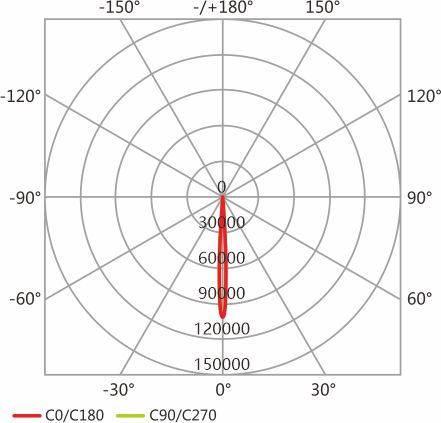

L02C-012A 40W 5°



(h)y

Eavg(lx)

Emax[lx]

D[m]
4 4358 6492 0.37
8 1090 1623 0.74
12 484 721 1.11
16 272 405 1.48
20 174 259 1.85

L02C-024A 60W 7°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 17652 27314 0.35
4 4413 6829 0.71
6 1961 3035 1.07
8 1103 1707 1.43
10 706 1093 1.79

L02C-024A 60W 15°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 9444 14077 0.48
4 2361 3519 0.96
6 1049 1564 1.45
8 590 879 1.93
10 377 563 2.42

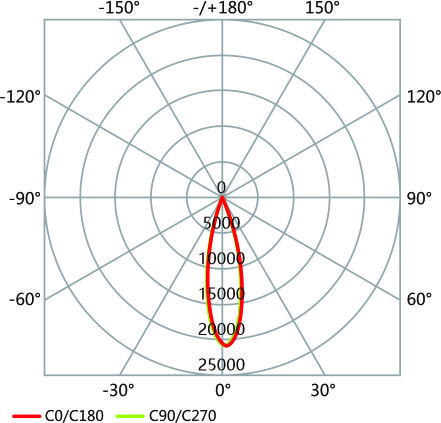

L02C-024A 60W 25°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 3534 5249 0.94
4 883 1312 1.88
6 392 583 2.83
8 220 328 3.77
10 141 209 4.71

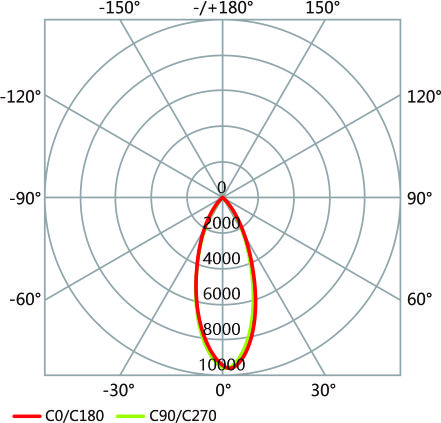

L02C-024A 60W 40°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 1568 2507 1.37
4 392 601 2.74
6 174 267 4.11
8 98 150 5.48
10 62 96 6.85

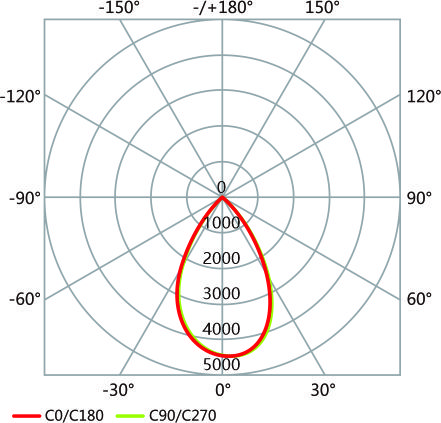

L02C-024A 60W 60°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 584 1135 2.37
4 171 283 4.74
6 76 126 7.11
8 42 70 9.48
10 27 45 11.86

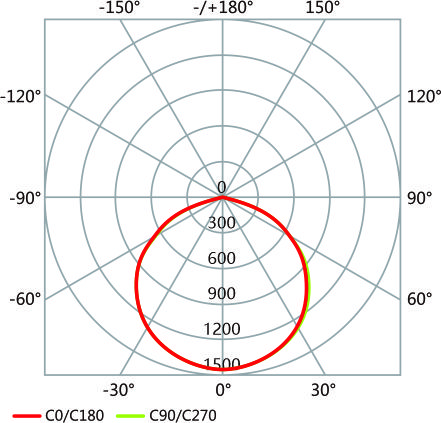

L02C-024A 60W 90°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

 431 1470

3.07

2

 107 367

6.14

3

 47 163

9.21

4

 26 91

12.29

5

 17 58

15.36

ACCESSORIES

L02C-006A



Rated Power

InputVoltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

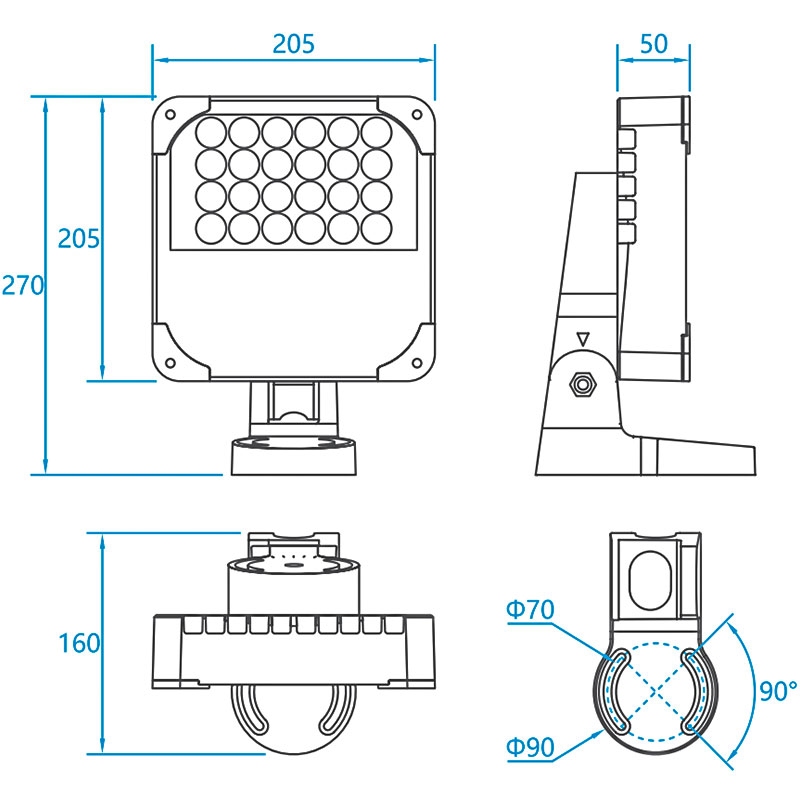

Lamp Size

Gross Weight/Packing Size



60W

AC 220V

6pcs/RGBW

2142lm

15°/25°/40°/60°

3.4kg

270x205x160mm

3.2 kg/340x340x 190(1pcs/box)

14.9 kg/520x 390x260(4pcs/box)

L02C-012A



Rated Power

Input Voltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000/5700K

40W

AC 220V

12 pcs

2728lm

3°/5°

3.2kg

270x205x160mm

3.5 kg/340x340x190(1pcs/box)

14.1kg/520x390x260(4pcs/box)

L02C-024A



Rated Power

Input Voltage

LED Quantity

Luminous Hux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000/5700K

60W

AC 220V

24 pcs

5192lm

7°/10°/15°/25°/40/6090°

15x55°/15x30°/15x45°

4x50°/1 3x40°/30x60°

3.2kg

270x205x160mm

3.5 kg/340x340x 190(1pcs/box)

14.1kg/520x390>260(4pcs/box)
