L02C tianxi flood light architectural lighting LO2C-C lighting

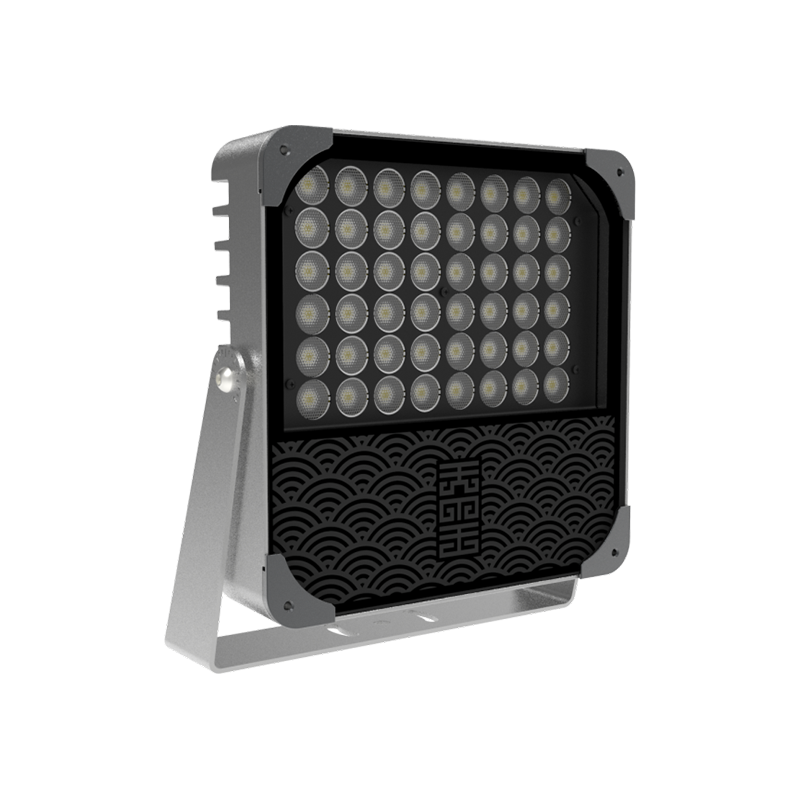

The L02C series is a floodlight with shielding and a large protection degree of IP67. It is used in architectural lighting and industrial lighting.The L02C tianxi flood light was designed for architectural lighting, with a housing and beam angle of 180 degrees/120 degrees. Its high brightness and large aperture achieve good light distribution and uniformity. With the high brightness, high beam angle and good color rendering index, it is suitable for larger area illumination. The product can be widely used in the display screen, advertisement billboard and street scenic spot by combining several units of lamps to form a circular light field.

PRODUCT PARAMETER

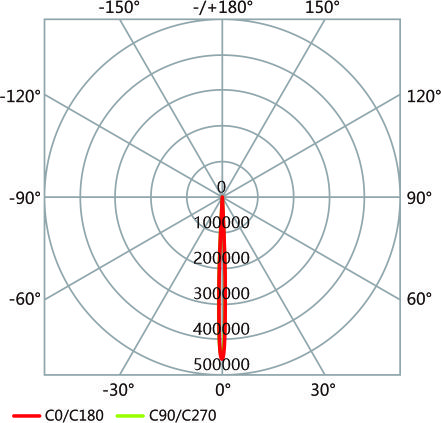

L02C-024C 80W 3°



(h)y

Eavg(lx)

Emax[lx]

D[m]
4 19500 30163 0.22
8 4875 7541 0.44
12 2167 3351 0.66
16 1219 1143 0.88
20 780 1207 1.1

L02C-024C 80W 5°

 12

(h)y

Eavg(lx)

Emax[lx]

D[m]
4 5678 8458 0.37
8 1420 2114 0.74
12 630 939 1.11
16 354 528 1.48
20 227 338 1.85

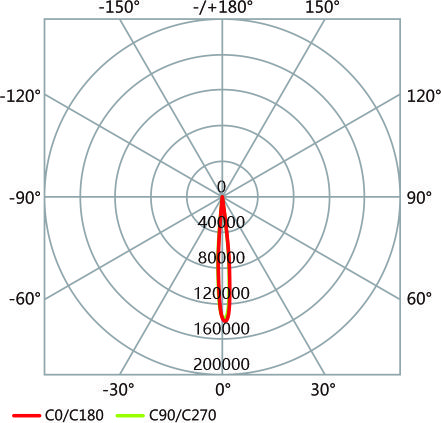

LO2C-048C 100W 7°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 29426 45533 0.35
4 7357 11383 0.71
6 3270 5059 1.07
8 1839 2846 1.43
10 1177 1821 1.79

L02C-048C 100W 15°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 15740 23463 0.48
4 3935 5866 0.96
6 1749 2607 1.45
8 983 938 1.93
10 629 575 2.42

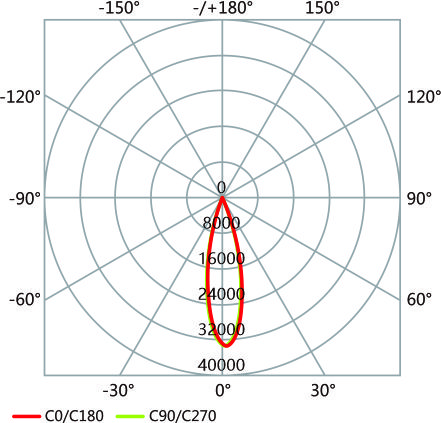

L02C-048C 100W 25°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 5892 8750 0.94
4 1473 2187 1.88
6 654 972 2.83
8 368 546 3.77
10 235 350 4.71

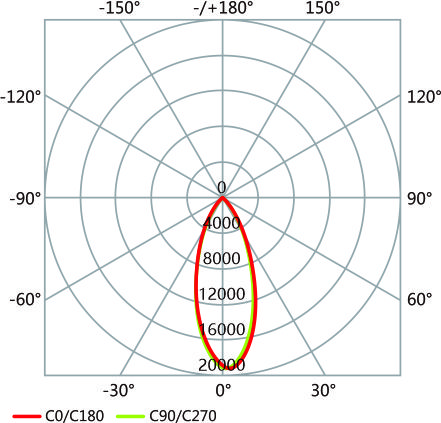

LO2C-048C 100W 40°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 2614 4012 1.37
4 653 1003 2.74
6 290 445 4.11
8 163 250 5.48
10 104 160 6.85

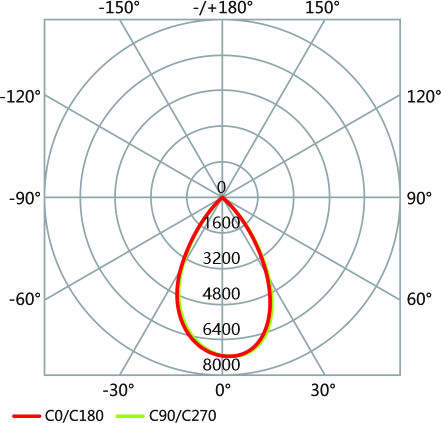

L02C-048C 100W 60°



(h)y

Eavg(lx)

Emax[lx]

D[m]
2 1140 1891 2.47
4 2850 472 4.74
6 126 210 7.11
8 71 118 9.48
10 45 75 11.88

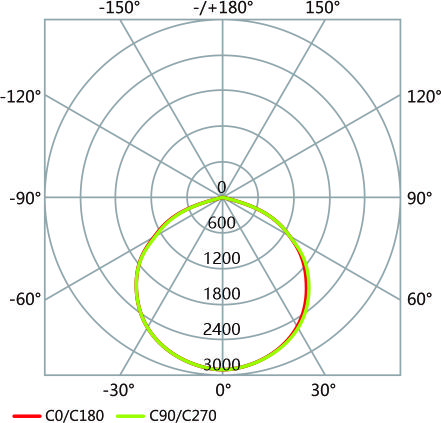

L02C-048C 100W 90°



(h)y

Eavg(lx)

Emax[lx]

D[m]

1

 790 674

3.07

2

 197 674

6.14

3

 87 299

9.21

4

 49 168

12.29

5

 31 107

15.36

ACCESSORIES

L02C-009C



Rated Power

 Input Voltage

 LED Quantity

Luminous Flux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size







80W

AC 220V

9pcs/RGBW

2752 lm

15°/25°/40°/60°

5.8kg

395x260x195mm

6.1kg/430x240x300(1pcs/box)

12.7kg/480x460x420(2pcs/box)

 L02C-012C



Rated Power

 Input Voltage

 LED Quantity

Luminous Flux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size



100W

AC 220V

12pcs/RGBW

36701m

15°/25°/40°/60°

5.9kg

395x260x195mm

6.2kg/430x240x300(1pcs/box)

12.9kg/520x390x260(2pcs/box)

 LO2C-024C



Rated Power

 Input Voltage

 LED Quantity

Luminous Flux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000/5700K

80W

AC 220V

24 pcs

5279 1m

3°/5°

5.8kg

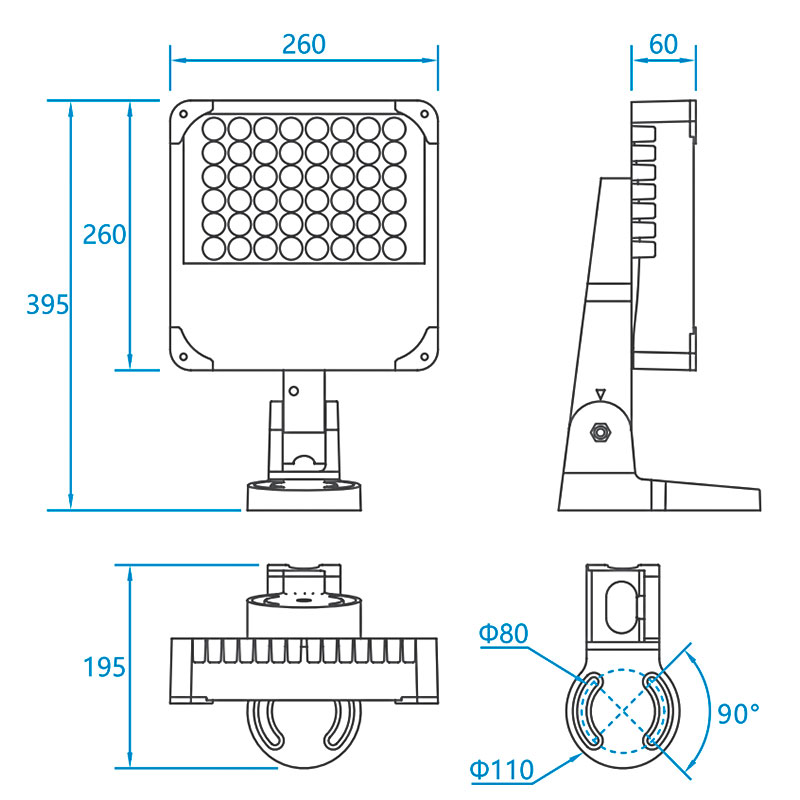

395x260x195mm

6.1kg/430x240x300(lpcs/box)

12.7kg/520x390x260(2pcs/box)

 L02C-036C



Rated Power

 Input Voltage

LED Quantity L

umlnous Flux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000K/RGBW

80W

AC 220V

36 pcs

74001m

7°/10/15/25/4060/90°

15x55°/15x30°/15x45°

4x50°/13x40°/30x60°

5.8kg

395x260x195mm

6.1kg/430x240x300(lpcs/box)

12.7kg/520x390x260(2pcs/box)

 LO2C-048C



Rated Power

 Input Voltage

LED Quantity L

uminous Flux

Optical Angle

Net Weight

Lamp Size

Gross Weight/Packing Size

3000/4000K/RGBW

100W

AC 220V

48 pcs

98671m

7°/10°/15254060/90°

15x55°/15x30°/15x45°

4x50°/13x40°/30x60°

5.9kg

395x260x195mm

6.2kg/430x240x300(1pcs/box)

12.9kg/520x390x260(2pcs/box)
