General highlights

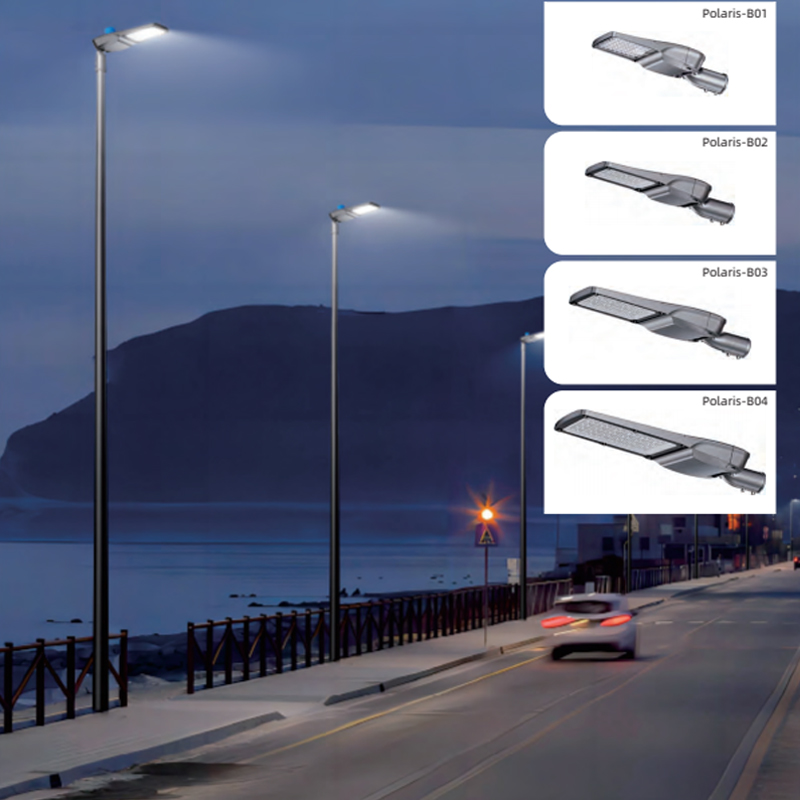

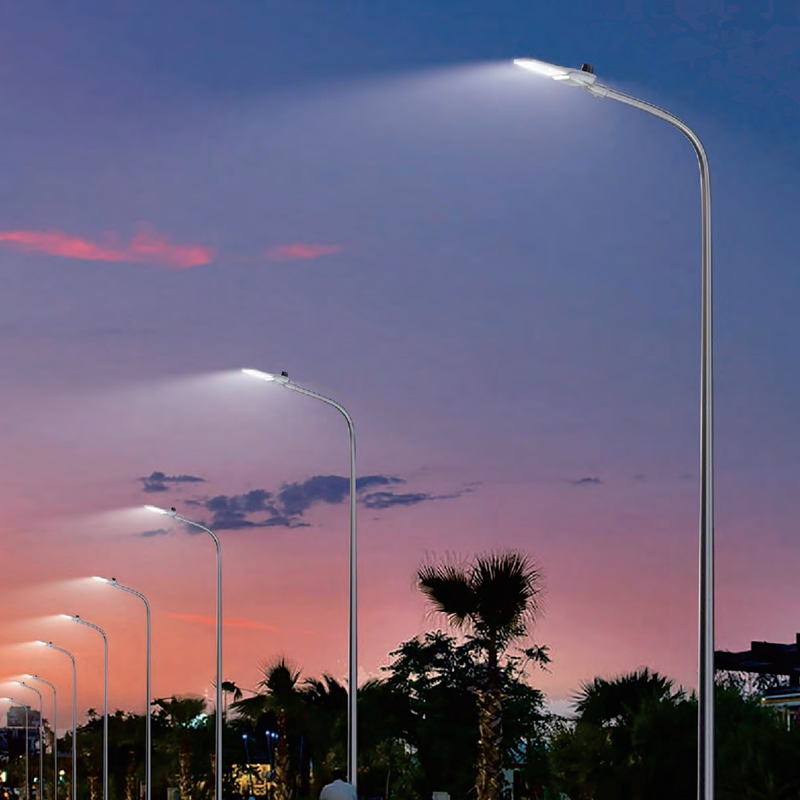

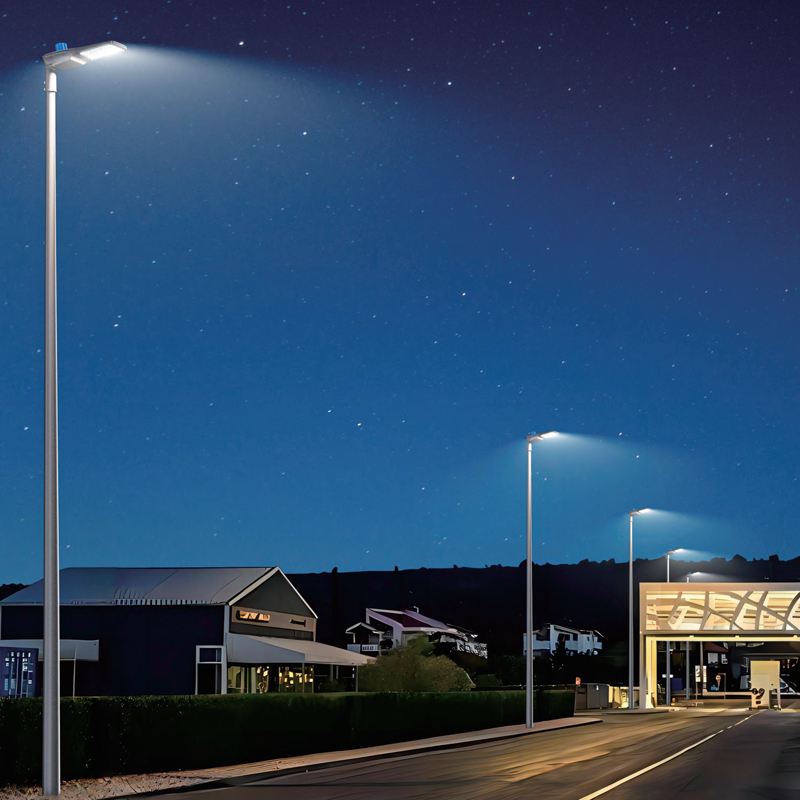

Used for outdoor lighting in places such as roads, squares, scenic spots, etc
Working temperature: -30°C/+50°C
Adopts a buckle design for easy installation and maintenance
Using high-quality chips
Less light decay, long-lasting and durable
The sleeve adopts a clamping design
Lamp poles with different calibers
Excellent heat dissipation
Corrosion-resistant die-cast aluminum casing
Electrostatic powder coating

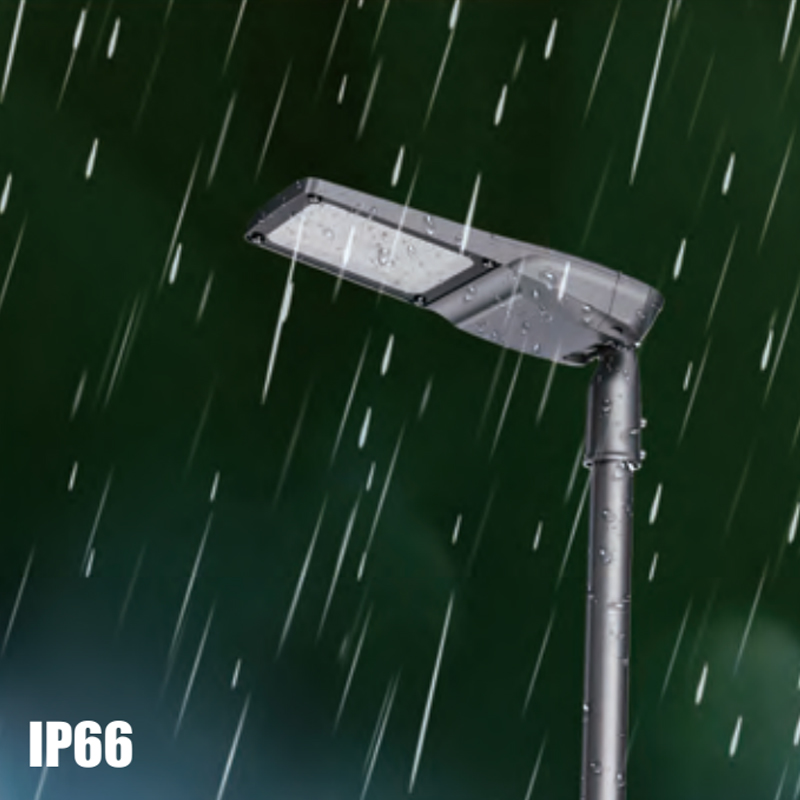

Protection level:IP66; Impact protection:IK09
Optical properties

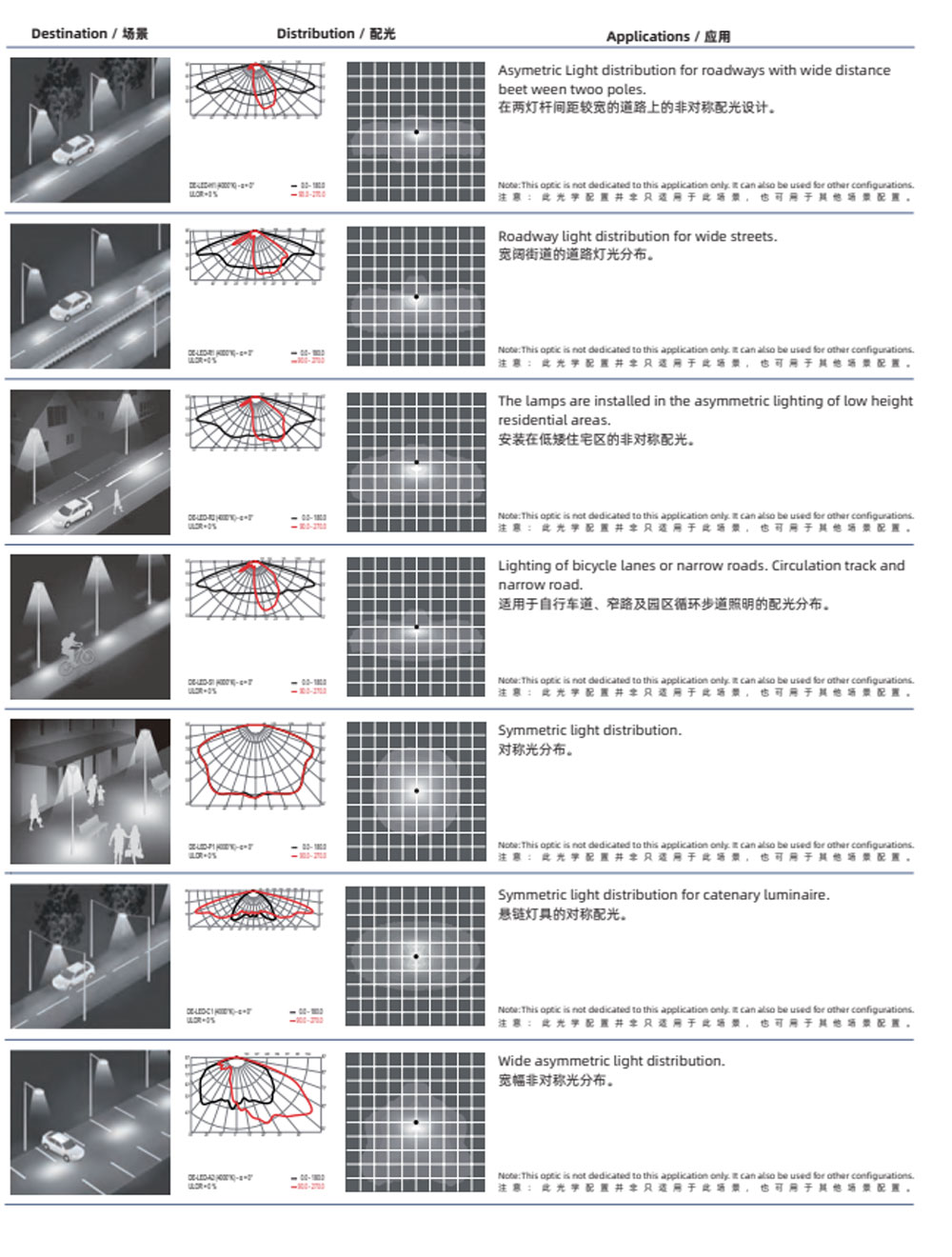

Different lens arrangements in different areas and installation areas
Uniform light distribution
Modular design of light source for easy replacement
Lumen output (absolute metering): 10800 lm-36000 lm
Color temperature: 2200K-6500K
Color rendering index: >70
SMART CONTROL SYSTEM

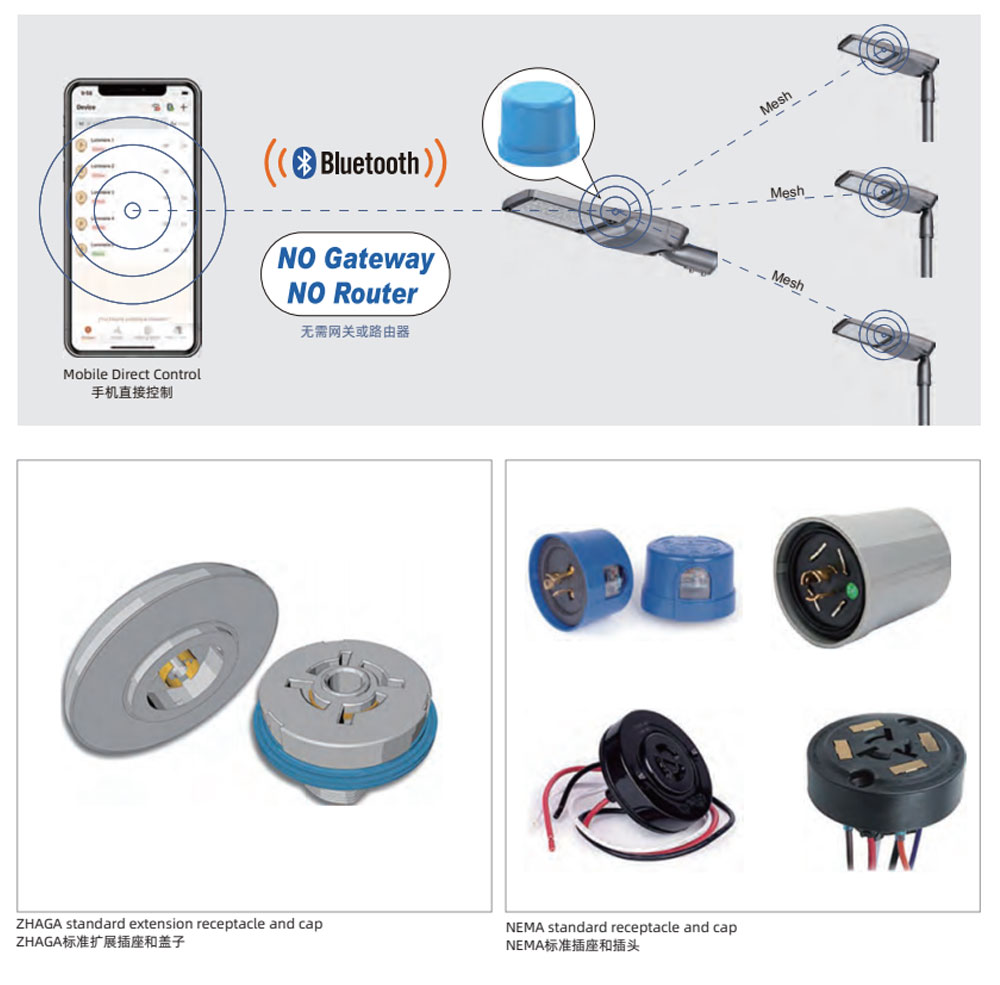

The Bluetooth intelligent control system has two kinds of network setup methods: one is a mobile phone directly connecting or communicating with the
control modes; and another method is connecting the gateway via mobile/PC. Features of mobile phone direct control: no need for the gateway.
The mobile phone connects to the modes by bluetooth signal; it's easy to operate, fast, safe, and flexible.
A gateway integrated into the control system as an extra central controller is required to save the total budget; gateways connect to each other by mesh network. If one
of the gateways fails, the system automatically switches to an alternative gateway to ensure the normal operation of the system. Account
management features multi-level permission management, multiple areas with different gateway configurations, and secure access control and
configuration capabilities.

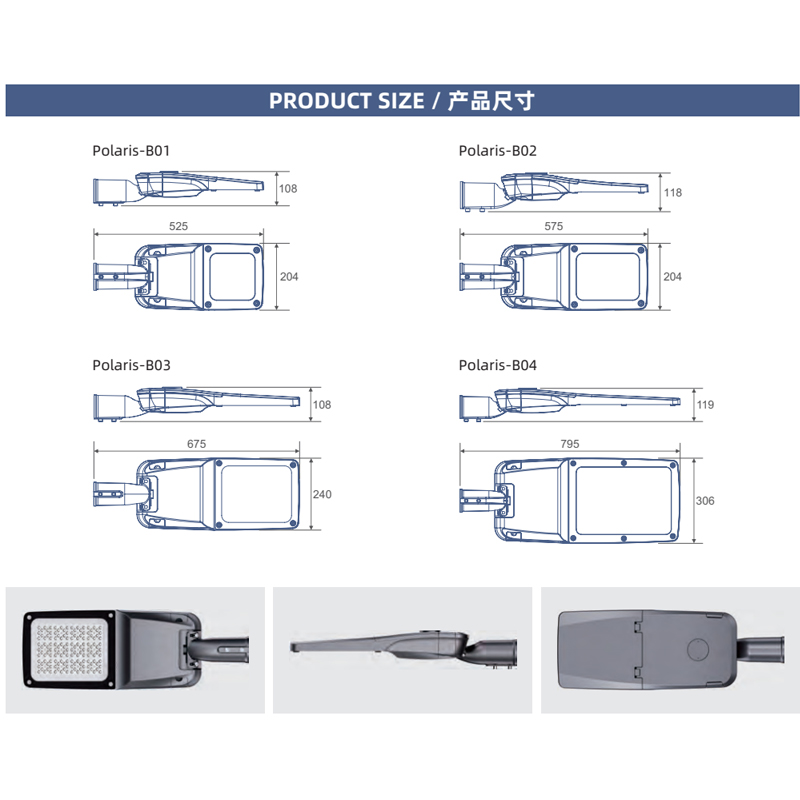

PRODUCT PARAMETER
| PRODUCT PARAMETERS | ||||

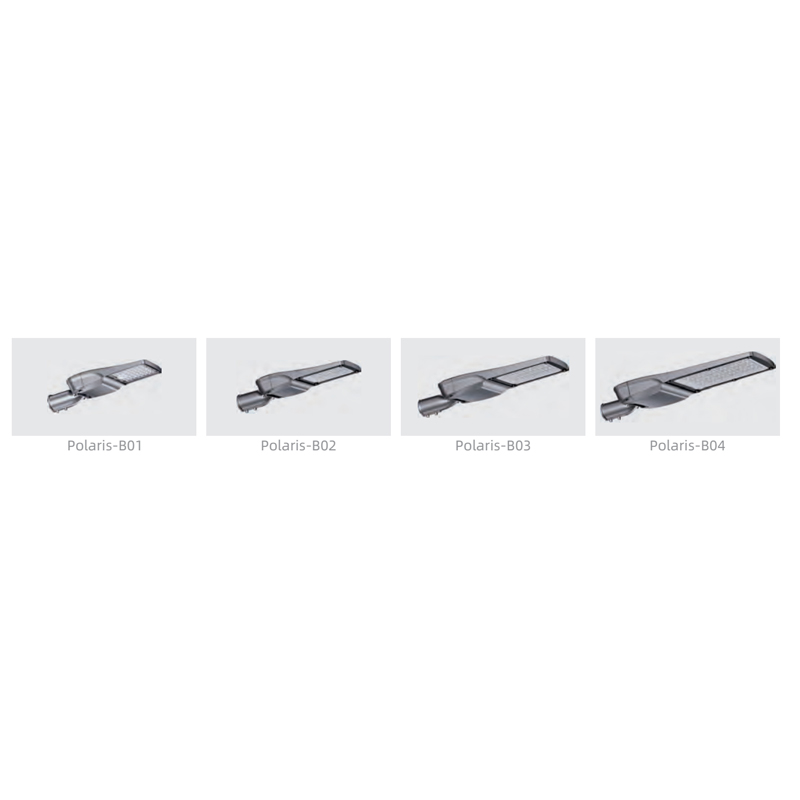

| Model | Polaris-B01 | Polaris-B02 | Polaris-B03 | Polaris-B04 |
| Power | 40-60W | 60-120W | 120-180W | 180-240W |
| INPUT VOLTAGE | AC100-277V | |||
| Frequency range | 50Hz/60Hz | |||
| Power factor | >0.95 | |||
| Whole lighting effect | 180Lm/W | |||
| LED lifespan | 50000H | |||
| Rendering Index | CRI70/80 | |||
| Color temperature | 2200K-6500K 2200K/2700K/3000K/4000K/5000K/5700K/6500K | |||
| IP | IP66 | |||
| IK | IK09 | |||
| Operation temperature | -30+50℃ | |||
| Storage temperature | -20℃~60℃.10%~90%RH | |||
| Lens Material | PC Lens | |||

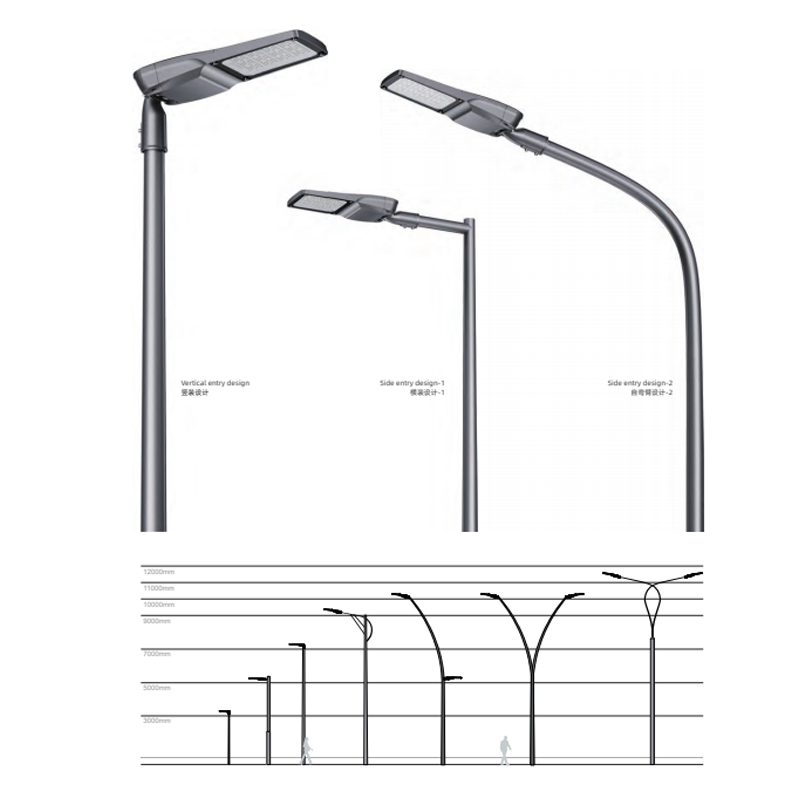

| Installation height | 4-6m | 6-9m | 9- 11 m | 10- 13 m |

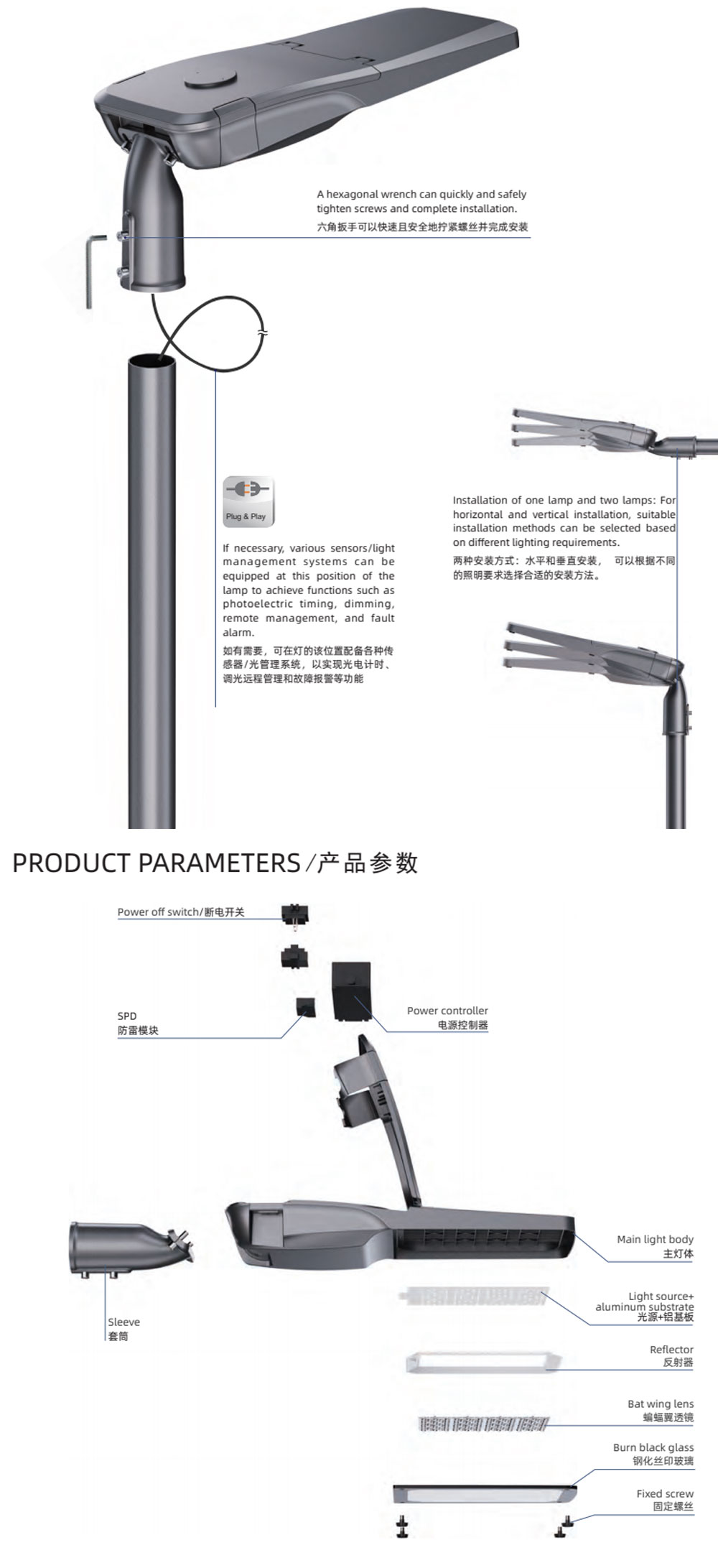

ACCESSORIES
INSTALLATION INSTRUCTIONS
 |
 |
 |

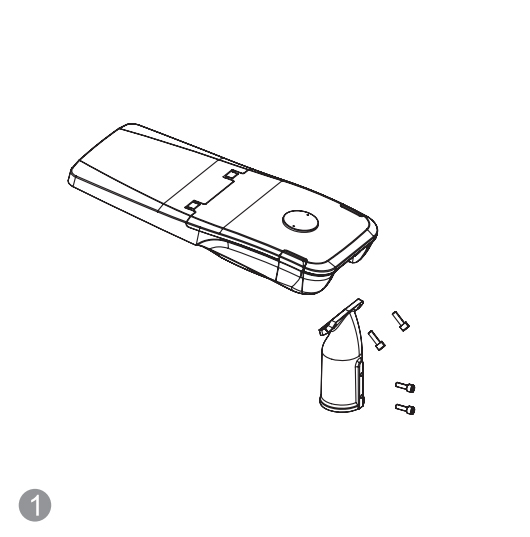

| Align the sleeve fixing hole with the screw hole, and fix the sleeve with the hexagon bolt and flat washer with a hexagon wrench. |

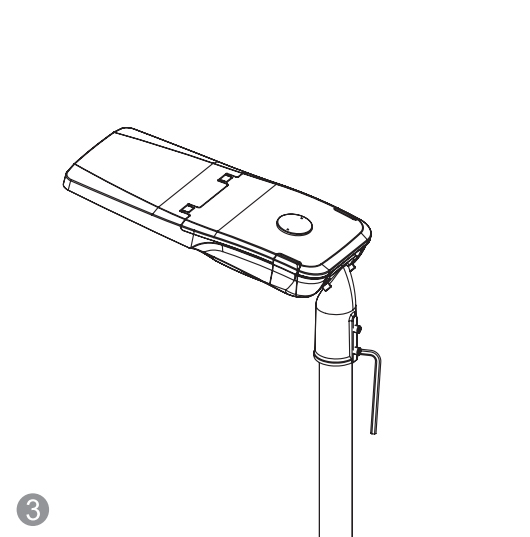

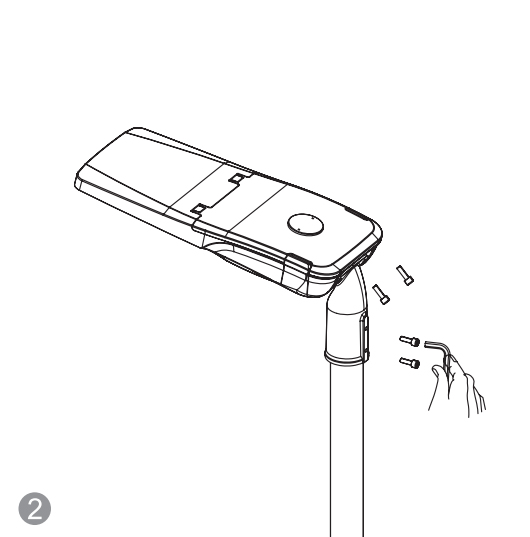

Align the lamp with the lamp pole and insert it, and fix it with hexagon wrench and hexagon socket bolt. |

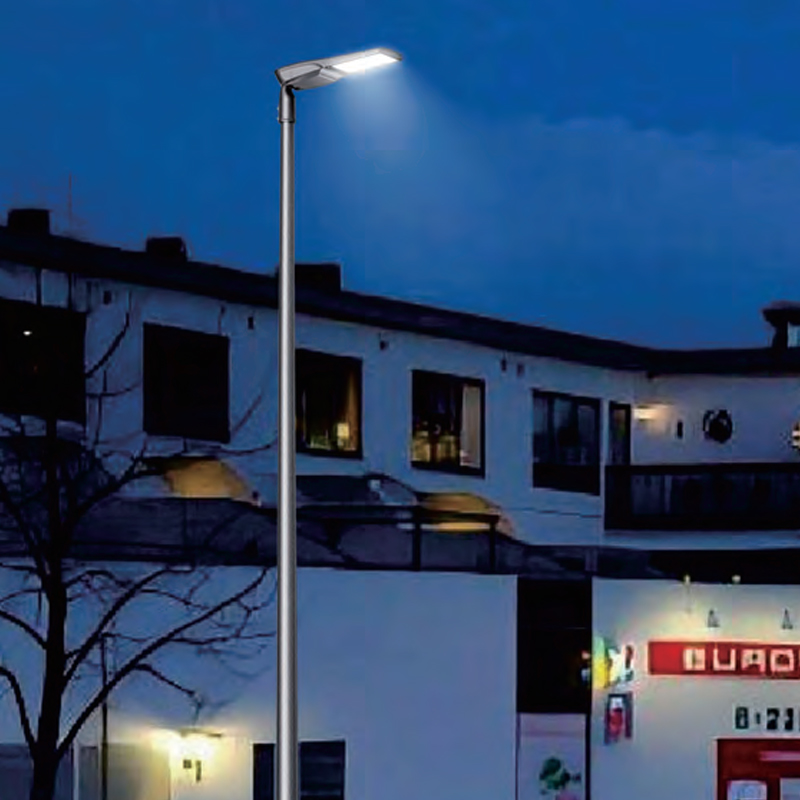

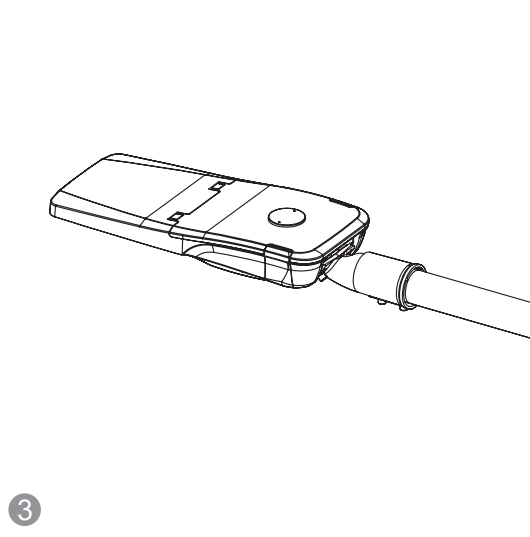

The effect of lamps after installation. |
 |
 |
 |

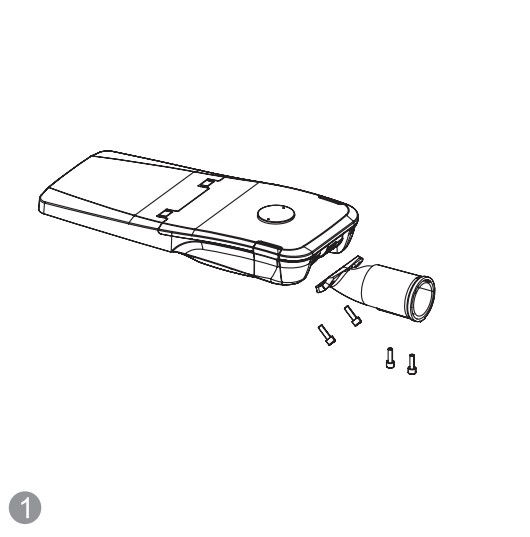

| Align the sleeve fixing hole with the screw hole, and fix the sleeve with the hexagon bolt and flat washer with a hexagon wrench. |

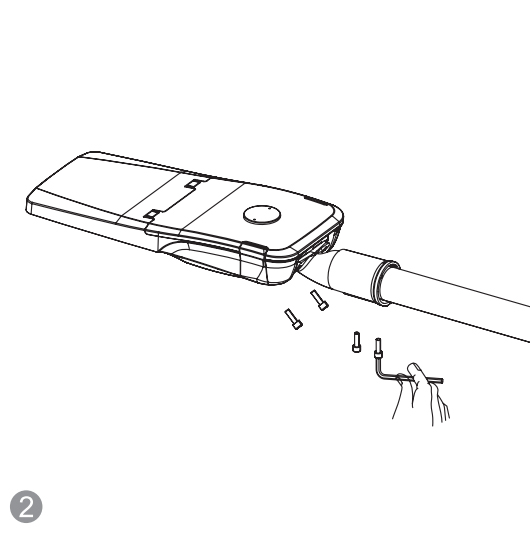

Align the lamp with the lamp pole and insert it, and fix it with hexagon wrench and hexagon socket bolt. |
The effect of lamps after installation. |
Matters needing attention：
The working voltage of this type of lamp shall be in accordance with the product specification and the product label;
Allwiring shall comply with the national installation specifications and standards, and all joints shall be connected and waterproof;
Lamp maintenance or replacement requires qualified personnel to replace to avoid danger;
The controller modulation shall be operated according to the instructions.
